SnapBase® – Quick-Mount Sensor Base
Screwless, repeatable and fast sensor mounting for industrial and offshore assets.
SnapBase® is a patented locking system developed by Holdstein Solutions to mount sensors quickly and securely. It replaces improvised brackets and long installation times with a simple “snap-in” base that keeps sensors in the right position and makes maintenance much faster.

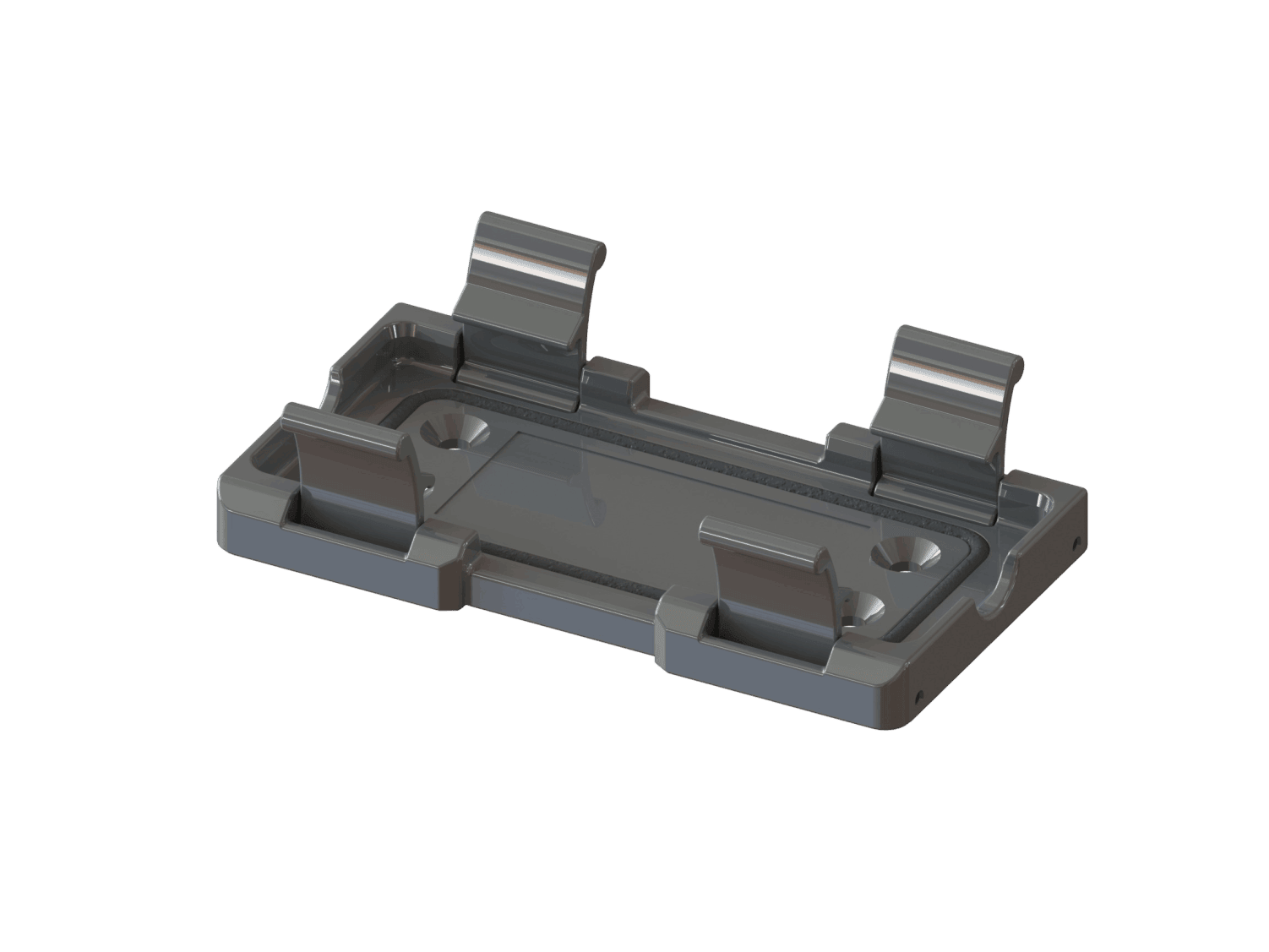

What is SnapBase®?
Base fixed to the structure
The SnapBase® is first mounted on the structure where the sensor needs to be installed – for example, on a machine frame, beam or support near the measurement point. This is the only part that is permanently attached to the asset.
Sensor snaps into place
A compatible sensor is placed into the base and locked by the built-in clamps. The locking is screwless and designed to provide a firm, repeatable position, so the sensor sits where it should for proper measurement.
Fast removal and repositioning
Where SnapBase® is used
Industrial equipment
Sensors mounted on pumps, motors, gearboxes and other rotating equipment in industrial plants, where access can be difficult and downtime is costly.

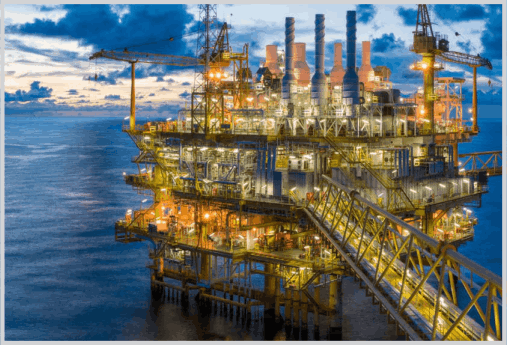

Offshore structures
Applications on FPSOs and offshore platforms where sensors need to be installed on structures, modules or supports exposed to harsh environments.
Temporary or campaign-based measurements
Situations where the same sensor is used in campaigns, moving from one asset to another, but returning to the same reference position later for comparison.
Integration with other Holdstein products
SnapBase® can be used with Holdstein’s standalone vibration & shock sensor and with other compatible instruments, helping integrate mechanical mounting into a broader monitoring strategy.
Why SnapBase® instead of epoxy mounting?
Some mounting methods fix the sensor permanently to the structure using epoxy adhesive. This may look simple at first, but it brings several practical and technical limitations in the field.
Compared to permanent epoxy mounting, SnapBase® offers clear advantages:
Removability vs. “glued forever”
With epoxy, the sensor is effectively permanent: removing it usually means cutting, grinding or damaging either the sensor or the coating on the structure. SnapBase® allows the sensor to be installed, removed and reinstalled without destroying anything.
True repeatability vs. “one-shot” installation
Once a sensor is epoxied, that position is unique and cannot be reused with the same precision if the sensor is removed. With SnapBase®, the base stays on the structure and the sensor can be snapped back into the same reference position, supporting consistent data over time and across campaigns.
Freedom of orientation vs. epoxy flow limitations
Epoxy-mounted sensors must be installed in orientations where the adhesive does not flow or sag while curing, which can force compromises in the sensor’s ideal direction. SnapBase® is mechanical, so the sensor can be oriented according to the measurement axis, not according to where the epoxy will or will not drip.
Faster maintenance and sensor replacement
If an epoxied sensor fails or needs calibration, field technicians face a difficult removal process and a full reinstallation. With SnapBase®, the sensor can be swapped in minutes, without reworking the structure or waiting for adhesive to cure.
Better defined mechanical coupling
The stiffness and thickness of an epoxy layer can vary from point to point, affecting how vibration and shock are transmitted to the sensor. SnapBase® uses a defined mechanical interface, helping keep the mounting conditions more consistent between installations.
Lower risk to coatings and corrosion protection
Removing an epoxied sensor often damages paint, coatings or even the substrate, which may require repair and can affect corrosion protection. SnapBase® keeps the structural interface in a known area and avoids repeated scraping and re-gluing on the structure itself.
Reusability of high-value sensors
Permanently bonding a sensor with epoxy often means it will stay on that asset for its entire life. SnapBase® makes it practical to reuse the same high-quality sensor across different assets or locations, while the bases remain installed where they are needed.
Lower installation risk and better field consistency
Epoxy mounting is sensitive to surface preparation, mixing ratio, cure time, humidity and temperature — small variations can lead to weak bonds or inconsistent results across technicians and sites. SnapBase® is a defined mechanical attachment method, reducing dependence on curing conditions and helping teams achieve consistent installations in real-world field environments.
